SIMEM Wetbeton 80
| Offer: | A-231205-2001 |
| Brand: | SIMEM |
| Model: | WETBETON 80 |
| Capacity: | 80 t/h |
| Year of construction: | 2001 |
|
|
General description
- 1 Aggregates group with 5 bins, total capacity 160 m³ with aggregates walls 5+4 mm.
Containing walls heigth 40 cm bolted on top of the three external sides
- 5 Protection grills mounted on top of aggregates bins
- 5 Double galvanised dosing cones and gates, with double doors and double cylinders
- 3 Vibrators on sand gates
- 1 Galvanised weighing hopper, 18 m³ capacity
- 2 Vibrator fixed on weighing hopper
- 1 Weighing system with 4 load cells C3 class 10.000 kg, jointed with analogic display EV2001
- 1 Extractor belt 800 mm x 14 m - v=50 t/m - Motor 11 kW - Flow rate 216 m³/h CE safety protection

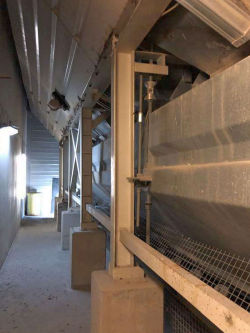

- 1 Inclined belt 20°, 800 mm x 32 t - v=120 t/m - Motor 18,5 kW - Flow rate 220 m³/h
- 1 Service floor close to the inclined belt with CE protection
- 1 Aggregates waiting hopper 3000 l with vibrator
- 1 Aggregates deviator to mixer or to dry loading point
Cements
- 2 Bolted silos, diam. 3.5 t, 90 m³ capacity (120 t)
- 2 Monolithic silos, diam 2.9 t
- 2 Fluification system
- 2 Minimun level indicator
- 2 Maximum level indicator
- 2 Pressure safety valves
- 4 Screw conveyors Diam. 273 mm

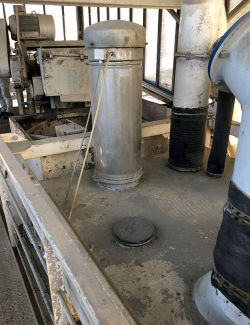

- 4 Duster filters on silos top

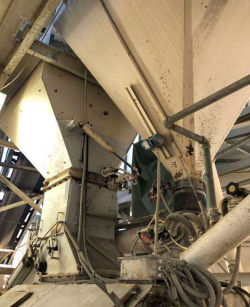

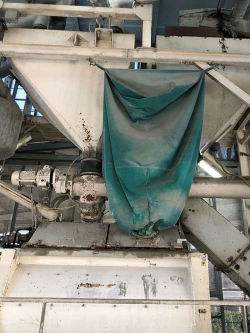

- 1 Cement hopper 3000 l with pneumatic butterfly valve and vibrator
- 1 Dust filter 1mq with pneumatic cleaning system
- 1 Weighing system 3 load cells C3 with disply EV2001
- 1 Horizontal screw conveyor diam. 273 mm, from cement hopper to the mixer or to the dry loading point
Water for mixer
- 1 Water hopper 6000 l
- 2 Pneumatic butterfly valves to load clean and dirty water
- 1 Weighing system 1 load cell with display EV2001
Water for Dry point
- 1 Flowmeter DN80
- 2 Pneumatic butterfly valves to load clean and dirty water
Dust filter for Dry point
- 1 Dust filter RM6000 with galvanized service floor and automatic advanced cleaning system
- 1 Screw conveyor 114 mm x 9 t to disharge cement dust on cement weigher

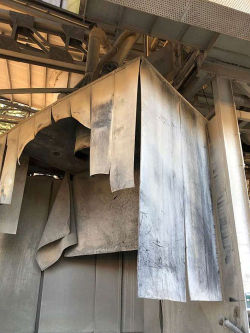

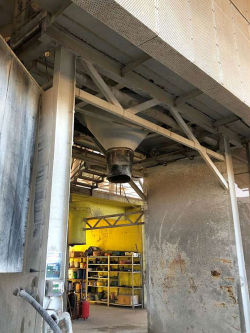

- 1 Dust suction hood installed on top of the loading point
Mixer
- 1 Open portal supporting frame height 5 m for the mixer; lateral service floor and single ramp access stair. Hot galvanisazion for all items.

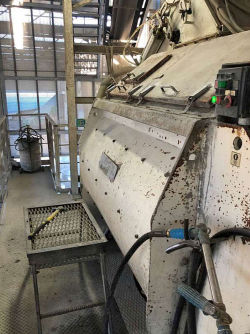

- 1 Twin shaft horizontal mixer MSO 3001
Dry filling capacity 3.000 l, concrete output 2.000 l (max. 4.800 kg)

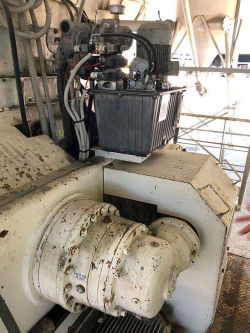

Two planetary type gearboxes with three reduction stages, driven by two electric motors power
2 x 37 kW, through elastic transmission; one syncro shaft installed between the gearboxes; two
articulated joints between gearboxes and main shafts
- 1 Automatic washing system 50 bar 18,5 kW
- 1 Airbag on the top of mixer
- 1 Concrete conveyor chute
Pneumatic
- 1 Screw type Compressor 7.5 kW, 10 Bar outlet air pressure
- 1 Air tank capacity 1000 l
- 1 Air dryer 1100 l/min
Control system
- 1 MCC power control 400 V 50 Hz
- 1 Electronic starter for mixer motors
- 1 Mixer pushbutton panel for starting, door opening, washing
- 1 Software Elettrondata Betonsystem
Admixture

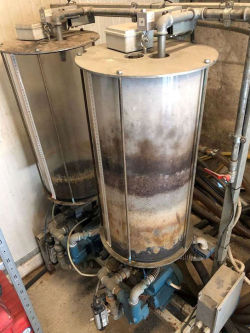

- 2 Additive dispenser with pumping system
The plant is in good conditions!
Sales price on request
Photos:
|
|
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
